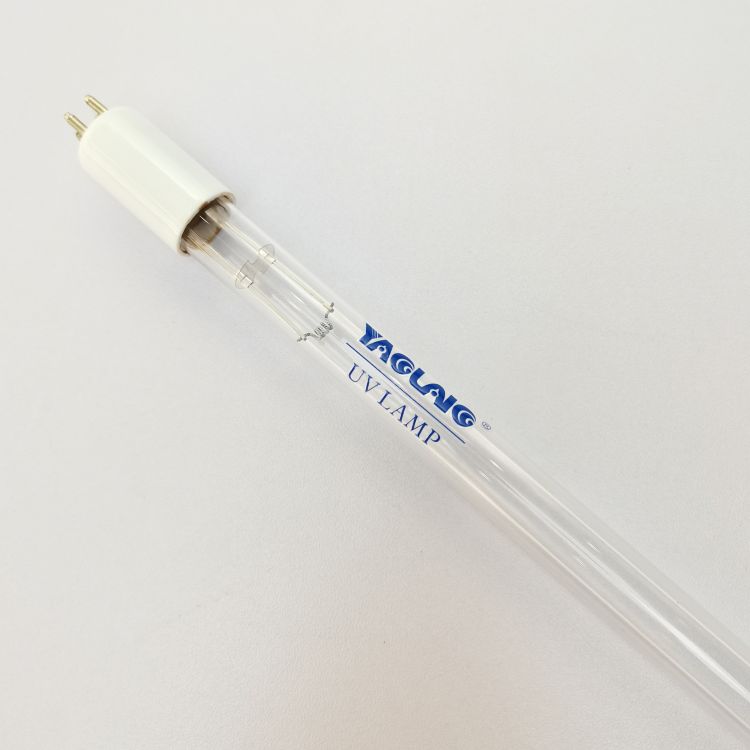

UVC LAMP -17W 303mm standard output uv light



  • Model : GPH357T5L
  • Ozone free (254nm )
  • Length:354mm
  • Diameter:15mm
  • Power:17W
  • Current:425mA
  • lifetime: 9000 hours uv output is not less than 80%.

Standard Output Quartz uvc lamp  – provides the highest efficiency by converting 40% of the lamp’s electrical power to UVC radiation at 254 nm. Low ozone type of quartz glass allows 90% transmission at 254 nm, blocking 185 nm energy. Very High ozone, VH, standard output lamps transmit both 185 nm for ozone producing lamps and 254 nm wavelengths. The type of fused quartz determines the wavelength emissions.

Model

Tube Diameter

BF-BF

Arc Length

Power

Current

Voltage

UV Output at 1m.254nm

Standard Life

Long Life

Wave Length
